Measuring Device for exhaled nitric oxide (FeNO)
Click on an image to open Gallery

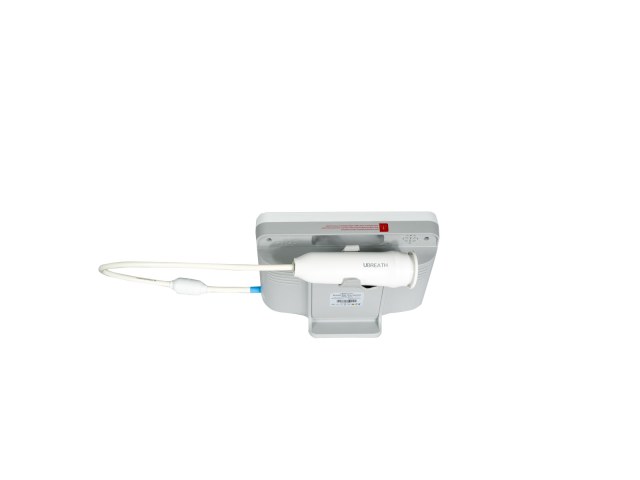

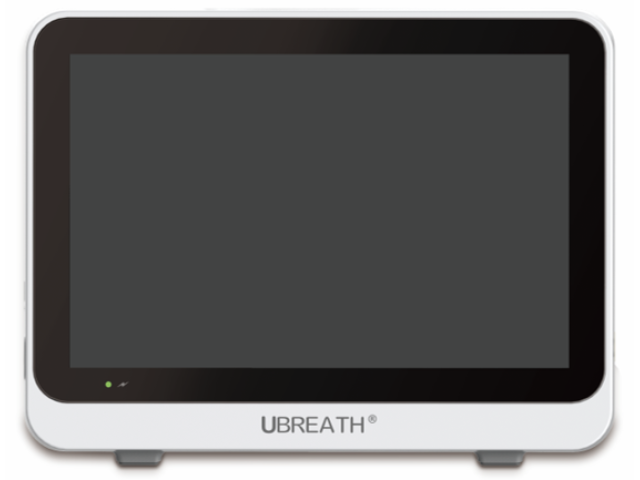

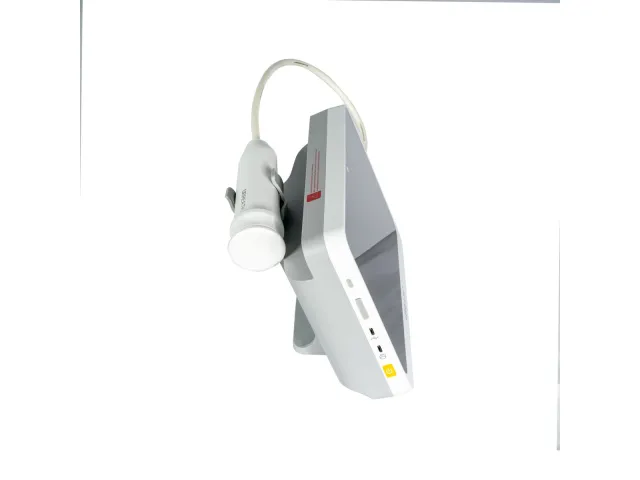

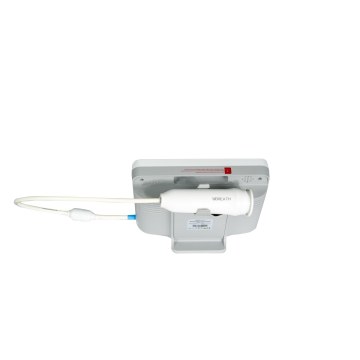

The UBREATH BA200 is a diagnostic device for measuring exhaled nitric oxide (FeNO), designed to assess inflammatory processes in the airways. It serves as a complementary tool in the clinical diagnosis of respiratory conditions, such as asthma and other chronic inflammatory diseases.
UBREATH BA200 Features
Accurate FeNO measurement, aiding in the diagnosis and monitoring of airway inflammation.
Electrochemical sensor for high sensitivity and reliable results.
Usable with a mouthpiece or nasal filter for different measurement methods.
Fast analysis, providing results in less than 30 seconds.
Repeatability of ±1.5 ppb, ensuring consistent measurements.
Portable design with a rechargeable 6-hour battery life.
10.1” IPS touch screen with high resolution for easy operation.
Technical Specifications
- Screen: 10.1’’ IPS (1200x1920)
- Memory: 16GB
- Operating Principle: Electrochemical sensor
- Usage Methods: Mouthpiece or nasal filter
- Measurement Range: 0-4000ppb
- Exhalation Time: ~10 sec for adults, ~6 sec for children
- Analysis Time: <30 sec
- Accuracy: ±2.5ppb (≤50ppb), <3% (>50ppb)
- Dimensions: 259 x 115 x 200 mm
- Power Supply: AC (100-240V) ~50/60Hz
- Battery: Lithium 3.7V 10000mAh (6-hour autonomy)
- Operating Environment: 5°C – 35°C, 80% RH
- Warranty: 2 years (device), 6 months (battery & accessories)

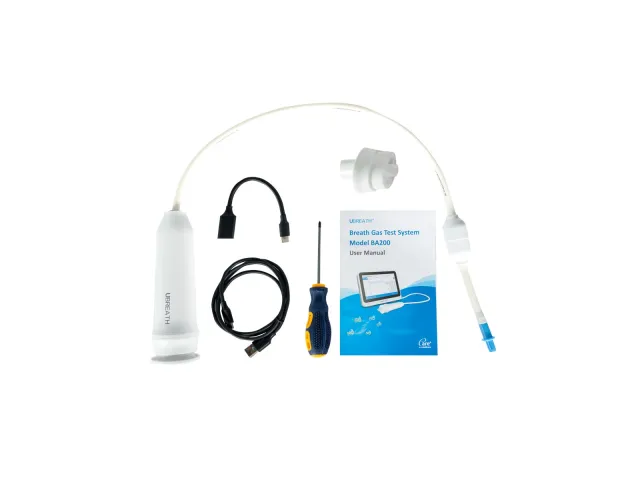

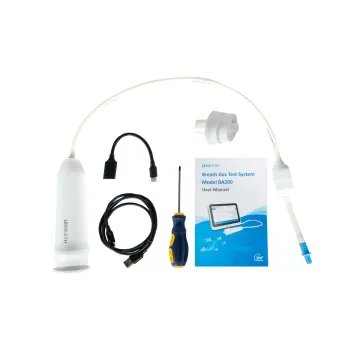

Package Contents
✔ Main unit ✔ Breathing handle (replace every 1500 tests) ✔ USB TYPE-C cable ✔ Battery ✔ User manual ✔ Screwdriver ✔ OTG cable
Optional Accessories
- Patient filter (mouthpiece) (Code: 0803885)
- Nasal filter (Code: 0803884)
- Charger
- NO sensor package + 100 patient filters (Code: 0803882)
- OTG cable
FAQ – UBREATH BA200 Exhaled NO Measurement Device
1. What does the UBREATH BA200 measure?
The UBREATH BA200 measures exhaled nitric oxide (FeNO), which is an indicator of airway inflammation. It is useful in diagnosing and monitoring conditions such as asthma and chronic respiratory diseases.
2. Who can use the device?
The device is intended for professional medical use, but it can also be used by individuals with respiratory conditions under medical guidance.
3. How is the measurement performed?
The user inhales deeply and then exhales slowly through the device. The analysis is completed in less than 30 seconds, and the results are displayed on the screen.
4. Is the measurement accurate?
Yes, the UBREATH BA200 uses a high-sensitivity electrochemical sensor with an accuracy of ±2.5ppb for low FeNO levels and <3% for higher levels.
5. Are consumables required for operation?
Yes, the device requires the NO sensor package + 100 patient filters (Code: 0803882). Additionally, mouthpieces and nasal filters (Codes: 0803885, 0803884) are available as optional accessories.
6. How often should the filters and sensor be replaced?
- The breathing handle should be replaced every 1500 measurements (Code: 0803883).
- The patient filters (mouthpiece & nasal) are single-use.
7. How long does the battery last?
The rechargeable lithium battery provides up to 6 hours of autonomy.
8. Is the device portable?
Yes, it has a compact design and operates on battery power, making it ideal for use in clinics and mobile diagnostic applications.
9. What is the warranty period?
The device warranty is 2 years, while the battery and accessories have a 6-month warranty.
The UBREATH BA200 is an essential tool for healthcare professionals, delivering accurate, fast, and reliable FeNO measurements to assess airway inflammation.
